Bearings

Conveyor Roll Bearings

*Re-lubrication provisions provided thru inner race.
**Based on 500 hours and 33 1/3 RPM.

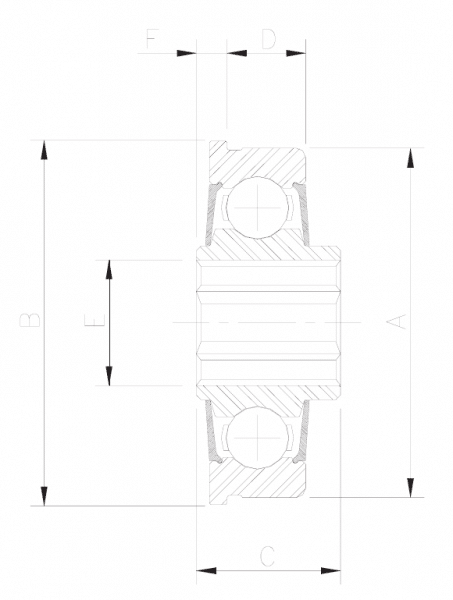

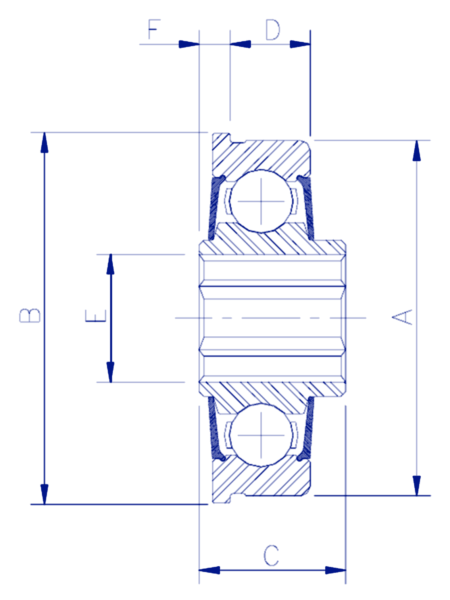

Part Number A Tread B Flange Diameter C Thru-Bore D Tread Dia. Length E Hex Bore Size F Hub Extension Basic B-10 Load Rating** Retainer Standard Shield/Seal Configuration
0959900 1.502 - 1.498 1.62 .68 .46 7/16" .22 667 lbs. Nylon Retainer Single Nylon Seal Both Sides
0988700 1.623 - 1.627 1.75 .68 .46 7/16" .15 667 lbs. Nylon Single Nylon Seal Both Sides
0973600 2.269 - 2.267 2.37 .94 .51 11/16" .20 1,605 lbs. Steel Retainer Single Nylon Seal Both Sides
0973200 2.302 - 2.298 2.37 .79 .51 11/16" .20 1,605 lbs. Steel Retainer Single Nylon Seal Both Sides
0983100 2.269 - 2.267 2.37 .94 .67 11/16" .20 1,675 lbs. Steel Retainer Nylon Contact Seals Both Sides
0983110* 2.269 - 2.267 2.37 .94 .67 11/16" .20 1,675 lbs. Steel Retainer Nylon Contact Seals Both Sides
0983200 2.269 - 2.267 2.37 .94 .67 11/16" .20 1,675 lbs. Steel Retainer Shield Only Both Sides
0985200 2.269 - 2.267 2.37 1.20 .67 11/16" .48 1,675 lbs. Steel Retainer Shielded Both Sides
2126360* 3.074 - 3.073 No Flange 1.47 1.09 1-1/16" .38 2,978 lbs. Steel Retainer Sealed Both Sides
2126390 3.796 - 3.792 3.93 1.47 .91 1-1/16" .56 2,978 lbs. Steel Retainer Sealed Both Sides
2126530 2.4415 - 2.4395 2.656 .766 .566 1-1/16" .20 2,168 lbs. Nylon Buna-N (Nitrile Rubber) Both Sides
