"H" Attachment

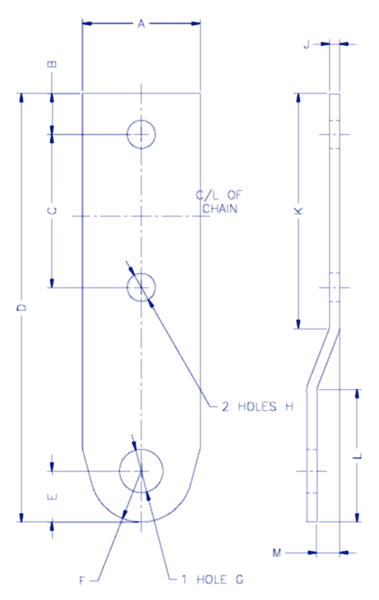

The Frost “H” attachment hangs your load or carrier from a 3″, 4″ or 6″ overhead conveyor trolley. One part number per trolley size, with every dimension in the table below.
Other attachment sizes and styles are available. Send your trolley size and a photo of the attachment and our team will match it.
| Part Number | 3" 0600031 | 4" 0600041 | 6" 0600061 |
|---|---|---|---|
| A | 1.47 | 2.00 | 3.00 |
| B | .50 | .69 | .75 |
| C | 1.88 | 2.13 | 2.75 |
| D | 5.25 | 5.63 | 7.00 |
| E | .63 | .75 | 1.00 |
| F | R .63 | R .75 | C 1.00 |
| G | .53 | .53 | .81 |
| H | .34 | .41 | .53 |
| J | .13 | .18 | .25 |
| K | 2.88 | 3.34 | 4.00 |
| L | 1.62 | 1.75 | 2.00 |
| M | .28 | .38 | .41 |
