Wheels

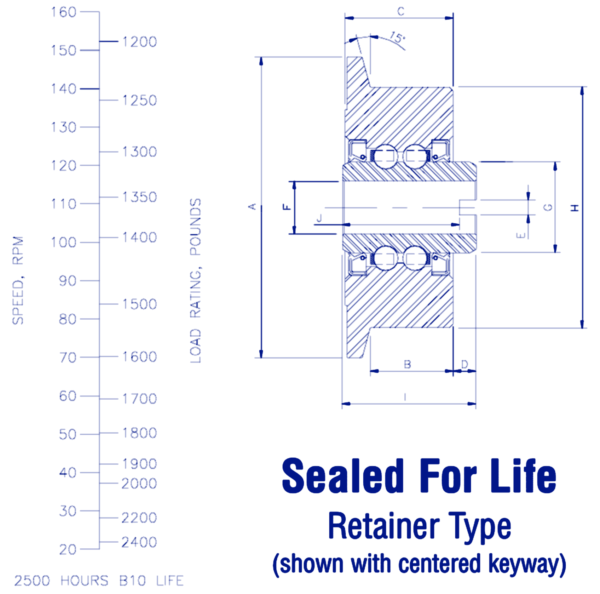

4 Inch Flat Top Wheels
*= 5/32″ offset keyway (not on C/L)
( )= dimensions in mm
| Product Number |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
Seal |
Wheel Design |
| 9560000 |
5.00 (127) |
1.375 (34.93) |
1.79 (45.5) |
0.36 (9.14) |
0.25 (6.35) |
.880 (22.35) |
1.499 (38.075) |
4.00 (101.60) |
2.22 (56.39) |
1.937 (49.20) |
Life |
Retainer |
| 9570000 |
5.00 (127) |
1.375 (34.93) |
1.79 (45.5) |
0.36 (9.14) |
0.25 (6.35) |
1.01 (25.65) |
1.499 (38.075) |
4.00 (101.60) |
2.22 (56.39) |
1.937 (49.20) |
Life |
Retainer |
| 9565000* |
5.00 (127) |
1.375 (34.93) |
1.79 (45.5) |
.49 (12.45) |
0.25 (6.35) |
1.01 (25.65) |
1.499 (38.075) |
4.00 (101.60) |
2.22 (56.39) |
1.937 (49.20) |
Life |
Retainer |
| 9575000* |
5.00 (127) |
1.375 (34.93) |
1.79 (45.5) |
0.36 (9.14) |
0.25 (6.35) |
1.01 (25.65) |
1.499 (38.075) |
4.00 (101.60) |
2.22 (56.39) |
1.937 (49.20) |
Life |
Retainer |
