Guide
Three caliper readings match a roller turn roller to a Frost part number: Overall Length (A), OD (B) and Bore Diameter (C). Overall Length tells you which conveyor the roller fits and which table to use. OD and Bore Diameter find the part number.
Before you start
You need calipers. Lock out and tag out the conveyor before you measure.
Step 01
Three numbers find your roller.
Measure with calipers, not a tape. Read each one to 0.01 in.

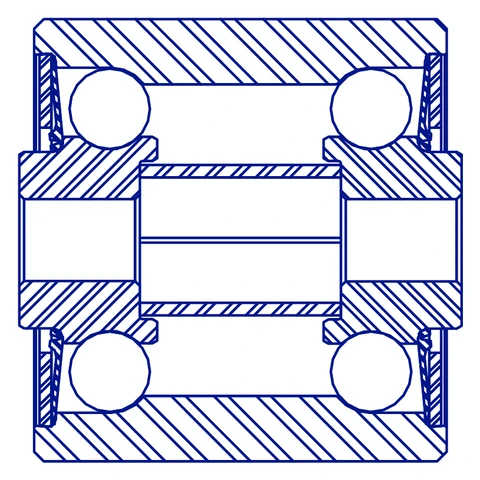

Fig. 1 · Standard roller shown. Every roller type is measured the same way.
| A | Overall LengthEnd to end, across the inner race at both ends. Take this one first. |
| B | OD (outer diameter)Across the outer race. A worn race can read small. |
| C | Bore DiameterInside jaws in the bore the bolt passes through. |
Step 02
Know your roller type.
Each type is a column in the part number tables. Not sure which one you have? Email us a photo.
 |
StandardStyle 1, Style 2, Triple Lab.Full ball bearing with a nitrile contact seal. To 250°F (121°C) intermittent with Frost standard grease. 2,400 lb. |
 |

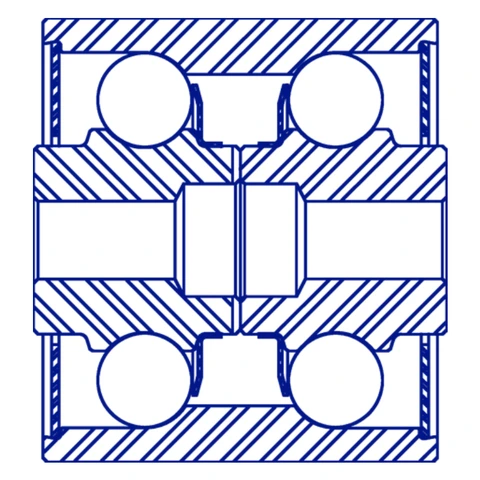

Special HD5/8 in bearingThe standard bearing with larger 5/8 in rolling elements for more load. 3,200 lb. Some come with Teflon-felt wipers. |
 |

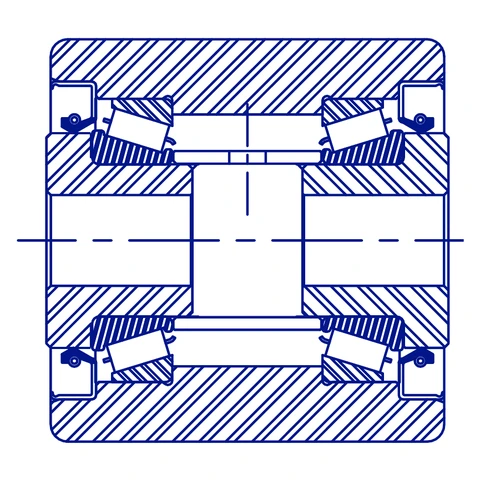

Super HDTapered rollerTapered roller bearings for heavy loads, shock and thrust. To 250°F (121°C). 5,000 lb. |
 |

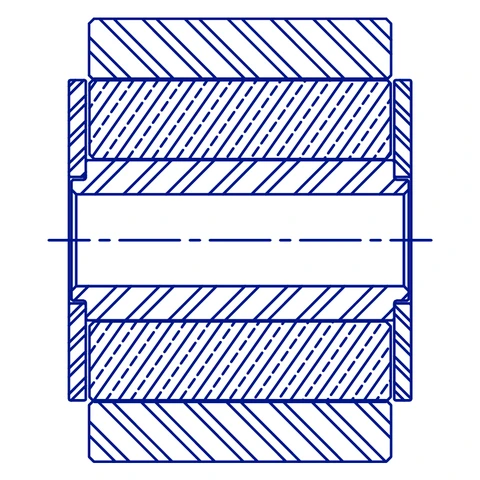

High Temp.Style 3A journal bearing with no rolling elements, for ovens. Up to 800°F (427°C) continuous. 2,200 lb. |
Step 03
Find your table.
Your Overall Length (A) tells you which conveyor the roller fits and where its part numbers are.
| Overall Length (A) | Fits | OD (B) sizes | Go to |
|---|---|---|---|
| 1.52 | X-228 conveyors | 1.75, 2.13 | X-228 table › |
| 1.87 | 3″ conveyors | 2.75 | 3″ table › |
| 2.13 | 3″ conveyors | 2.75, 2.83, 2.95 | 3″ table › |
| 2.75 | 4″ and 6″ conveyors | 2.75, 2.81, 2.83, 2.95, 3.00 | 4″ and 6″ table › |
| 2.81 | 4″ and 6″ conveyors | 2.81, 3.00 | 4″ and 6″ table › |
How to read the tables
OD (B) picks the band. Bore Diameter (C), .50, .58, .63 or .75, picks the row. Your roller type picks the column. Example: 2.75 Overall Length, 2.75 OD and .75 Bore Diameter is a Standard Style 1, part number 0407000.
Part numbers: fits 3″ conveyors.
Overall Length (A) 1.87 or 2.13.
| Bore Diameter (C) | Standard Style 1 |
Standard Style 2 |
Triple Lab. | Super HD | High Temp. |
|---|---|---|---|---|---|
| Overall Length (A) 1.87 · OD (B) 2.75 | |||||
| .50 | 0300100 | 0430000 | · | · | · |
| .63 | · | 0430600 | · | · | · |
| Overall Length (A) 2.13 · OD (B) 2.75 | |||||
| .50 | 0305100 | 0431000 | 0375100 | · | 0412500 |
| .58 | 0305700 | 0432000 | · | · | 0412000 |
| .63 | 0304800 | 0436000 | 0375200 | · | 0412520 |
| .75 | 0307000 | · | · | · | · |
| Overall Length (A) 2.13 · OD (B) 2.83 | |||||
| .50 | 2812700 | · | · | 0314010 | · |
| .58 | 2812400 | · | · | 0314020 | · |
| .63 | 2812600 | · | · | 0314000 | · |
| .75 | · | · | · | 0314050 | · |
| Overall Length (A) 2.13 · OD (B) 2.95 | |||||
| .50 | 0305200 | · | 0375300 | · | · |
| .58 | 0305800 | · | · | · | · |
| .63 | 0304900 | 0433200 | 0375400 | · | · |
| .75 | 0307100 | · | · | · | · |
· means not made in this size.
Part numbers: fits 4″ and 6″ conveyors.
Overall Length (A) 2.75 or 2.81.
| Bore Diameter (C) | Standard Style 1 |
Standard Style 2 |
Triple Lab. | Special HD | Super HD | High Temp. |
|---|---|---|---|---|---|---|
| Overall Length (A) 2.75 · OD (B) 2.75 | ||||||
| .50 | 0405100 | 0441000 | 0405200 | · | · | 0413500 |
| .58 | 0405700 | 0442000 | · | · | · | 0413000 |
| .63 | 0407200 | 0443000 | 0477200 GK | · | · | 0413520 |
| .75 | 0407000 | · | · | · | · | · |
| Overall Length (A) 2.75 · OD (B) 2.81 | ||||||
| .50 | · | · | · | · | 0404210 | · |
| .58 | · | · | · | · | 0404220 | · |
| .63 | · | · | · | · | 0404200 | · |
| .75 | · | · | · | · | 0404250 | · |
| Overall Length (A) 2.75 · OD (B) 2.83 | ||||||
| .58 | 2812500 | · | · | · | · | · |
| .63 | 2812300 | · | · | · | · | · |
| Overall Length (A) 2.75 · OD (B) 2.95 | ||||||
| .50 | 0414630 | 0463200 | · | 0404620 | · | 0413600 |
| .58 | 0414670 | 0463300 | · | · | · | 0413100 |
| .63 | 0414600 | 0463100 | · | 0404900 FW | · | 0413620 |
| .75 | 0414650 | 0463400 | · | 0404950 FW | · | · |
| Overall Length (A) 2.75 · OD (B) 3.00 | ||||||
| .50 | · | · | · | · | 0404510 | · |
| .58 | · | · | · | · | 0404520 | · |
| .63 | · | · | · | · | 0404500 | · |
| .75 | · | · | · | · | 0404550 | · |
| Overall Length (A) 2.81 · OD (B) 2.81 | ||||||
| .50 | · | · | · | · | 0404010 | · |
| .58 | · | · | · | · | 0404020 | · |
| .63 | · | · | · | · | 0404000 | · |
| .75 | · | · | · | · | 0404050 | · |
| Overall Length (A) 2.81 · OD (B) 3.00 | ||||||
| .50 | · | · | · | · | 0404110 | · |
| .58 | · | · | · | · | 0404120 | · |
| .63 | · | · | · | · | 0404100 | · |
| .75 | · | · | · | · | 0404150 | · |
· means not made in this size. FW = with Teflon-felt wipers. GK = with grease keeper.
Part numbers: fits X-228 conveyors.
Overall Length (A) 1.52 and Bore Diameter (C) .25.
| Roller | OD (B) | Standard Style 1 |
Standard Style 2 |
|---|---|---|---|
| Drive roller | 1.75 | 2310000 | 2320000 |
| Roller turn roller | 2.13 | 0310000 | 3190000 |
Not in the tables? Call 616.453.7781.
Bolts and hardware.
We quote the full assembly. Every roller is quoted with its hardware, matched by conveyor and Bore Diameter (C).
| Conveyor | Bore Diameter (C) | Bolt | Lock washer | Nut | Lock nut |
|---|---|---|---|---|---|
| 3″ | .50 | 0300708 | 5049025 | 0062100 | 0063100 |
| .58 | 0305621 | 0045100 | 0562019 | 0565919 | |
| .63 | 0306251 | 0068820 | 0062150 | 0062155 | |
| 4″ and 6″ | .50 | 0400308 | 5049025 | 0062100 | 0063100 |
| .58 | 0401261 | 0045100 | 0562019 | 0565919 | |
| .63 | 0425505 | 0068820 | 0062150 | 0062155 | |
| .75 | 0402705 | 87924 | 0075019 | 23217 |
Not listed
3″ conveyors at .75 Bore Diameter, 1.87 Overall Length at .63, and X-228 rollers. Call 616.453.7781 and we’ll quote the hardware.
Bolt dimensions: 3″ roller turn bolts and 4″ and 6″ roller turn bolts.
Questions we hear a lot.
How do you measure a roller turn roller?
Use calipers and read three numbers to 0.01 in: Overall Length end to end across the inner race, OD across the outer race, and Bore Diameter inside the bore the bolt passes through.
Which measurement do I take first?
Overall Length. 1.52 in fits X-228 conveyors, 1.87 or 2.13 in fits 3″ conveyors, and 2.75 or 2.81 in fits 4″ and 6″ conveyors.
What is the difference between Special HD and Super HD roller turn rollers?
Special HD uses the standard bearing with larger 5/8 in rolling elements and is rated 3,200 lb. Super HD uses tapered roller bearings for heavy loads, shock and thrust and is rated 5,000 lb.
Which roller turn roller is made for ovens?
The High Temp. Style 3. It uses a journal bearing and runs up to 800°F (427°C) continuous, rated 2,200 lb.
Does Frost quote the bolt and hardware too?
Yes. Every roller is quoted with its bolt, lock washer, nut and lock nut, matched by conveyor and Bore Diameter.
Talk with our team
Send us three numbers. We’ll match the roller.
Send the Overall Length, OD and Bore Diameter, your operating temperature, the part number if you have it, and a photo of the roller.
616.453.7781 · frost.sales@frostinc.com
Want a copy for the shop floor? Download the printable guide (PDF). Product specs: roller turn rollers. Replacing chain too? See how to measure conveyor chain.
