Steel Trolley Wheels
3" Stud Type Wheel

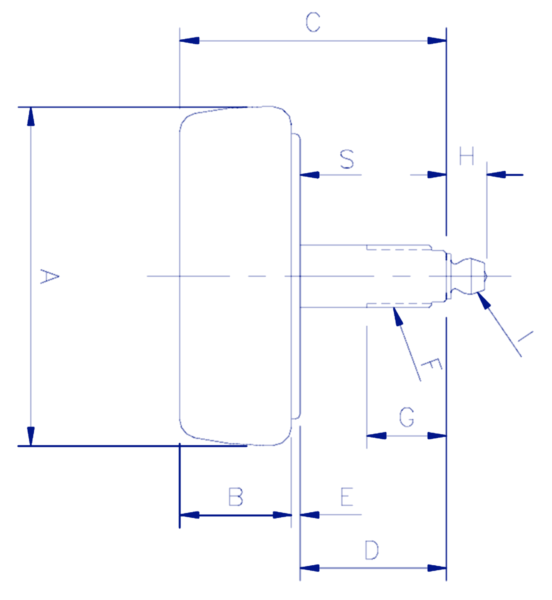

Frost 3″ stud type trolley wheels have an integral threaded stud that bolts into the trolley bracket.
Of the 10 part numbers, 8 are retainer and 2 are full ball complement. Seals: Splashproof® (6), triple labyrinth (2) and contact lip seal (2). Studs are 7/16-20NF on most wheels, with 1/2-20NF (5702000) and 5/8-18NF (3286000) versions.
Flat tread wheels are marked * in the table: 3280000, 3281000 and 3286000.
A 3″ retainer wheel runs 7 balls in a steel separator for the lowest friction, rated to 325°F. A 3″ full ball complement wheel runs 11 balls with no separator for heavy load and contamination, rated to 500°F. Our wheel configuration guide shows how to tell them apart.
Table key
*=Flat tread
| Part Number | Wheel Design | A | B | C | D | E | F | G | H | I | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5700000 | Retainer | 2.34 | .78 | 1.85 | 1.01 | .06 | 7/16-20NF | .45 | .375 | 3038B | Splashproof® |
| 5710000 | Retainer | 2.34 | .78 | 1.36 | .52 | .06 | 7/16-20NF | .45 | .375 | 3038B | Splashproof® |
| 3280000* | Retainer | 2.31 | .78 | 1.85 | 1.01 | .13 | 7/16-20NF | .75 | .375 | 1728B | Splashproof® |
| 3281000* | Retainer | 2.31 | .78 | 1.85 | 1.01 | .13 | 7/16-20NF | .75 | .375 | 1728B | Contact Lip Seal |
| 3500000 | Retainer | 2.34 | .78 | 1.91 | 1.01 | .13 | 7/16-20NF | .75 | .375 | 1728B | Triple Labyrinth |
| 3501000 | Retainer | 2.34 | .78 | 1.91 | 1.01 | .13 | 7/16-20NF | .75 | 0 | NONE | Contact Lip Seal |
| 3286000* | Retainer | 2.31 | .78 | 2.315 | 1.50 | .05 | 5/8-18NF | .75 | .375 | 3038B | Triple Labyrinth |
| 5702000 | Retainer | 2.34 | .78 | 1.90 | 1.05 | .06 | 1/2-20NF | .95 | .375 | 3038B | Splashproof® |
| 5730000 | Full Ball Comp. | 2.34 | .78 | 1.36 | .52 | .06 | 7/16-20NF | .45 | .375 | 3038B | Splashproof® |
| 5740000 | Full Ball Comp. | 2.34 | .78 | 1.85 | 1.01 | .06 | 7/16-20NF | .45 | .375 | 3038B | Splashproof® |
