Steel Trolley Wheels
4" Thru-Bore Trolley Wheels
Frost 4″ thru-bore trolley wheels mount through the center bore.
Of the 11 part numbers, 5 are retainer and 6 are full ball complement. Bores are .500″, .625″ and 1.00″. Seals are Splashproof® on most wheels, plus contact lip seal (8401000, 4015000) and triple labyrinth (4010000, 7190000).
Wheels marked * (4010000, 4015000) have a special 1″ bore designed for swaging to the trolley bracket.
A 4″ retainer wheel runs 8 balls in a steel separator for the lowest friction, rated to 325°F. A 4″ full ball complement wheel runs 13 balls with no separator for heavy load and contamination, rated to 500°F. Our wheel configuration guide shows how to tell them apart.
Table key
*=Special ‘1’ bore, designed for swaging

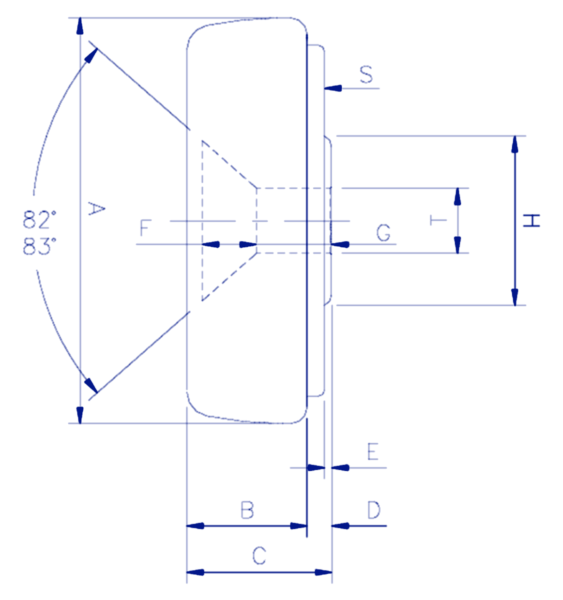

| Part Number | Wheel Design | A | B | C | D | E | F | G | H | S | T |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 8220000 | Retainer | 3.19 | .938 | 1.13 | .19 | .06 | .18 | .78 | 1.34 | Splashproof® | 1.00 |
| 8400000 | Retainer | 3.19 | .938 | 1.13 | .19 | .06 | .42 | .60 | 1.34 | Splashproof® | .625 |
| 8410000 | Retainer | 3.19 | .938 | 1.13 | .19 | .06 | .42 | .60 | 1.34 | Splashproof® | .500 |
| 7245000 | Retainer | 3.19 | .938 | 1.07 | .13 | 0 | .28 | .67 | 1.34 | Splashproof® | .625 |
| 8401000 | Retainer | 3.19 | .938 | 1.13 | .19 | 0 | .42 | .60 | 1.34 | Contact Lip Seal | .625 |
| 8230000 | Full Ball Comp. | 3.19 | .938 | 1.13 | .19 | .06 | .18 | .84 | 1.34 | Splashproof® | 1.00 |
| 8300000 | Full Ball Comp. | 3.19 | .938 | 1.13 | .19 | .06 | .275 | .71 | 1.34 | Splashproof® | .625 |
| 7191000 | Full Ball Comp. | 3.19 | .938 | 1.13 | .19 | .06 | .275 | .71 | 1.34 | Splashproof® | .500 |
| 4010000* | Full Ball Comp. | 3.25 | 1.00 | 1.16 | .16 | 0 | See note | See note | 1.60 | Triple Labyrinth | 1.00 |
| 4015000* | Full Ball Comp. | 3.25 | 1.00 | 1.16 | .16 | 0 | See note | See note | 1.60 | Contact Lip Seal | 1.00 |
| 7190000 | Full Ball Comp. | 3.19 | .938 | 1.19 | .25 | .12 | .30 | .77 | 1.34 | Triple Labyrinth | .625 |
