6" Thru-Bore Type Wheels

Frost 6″ thru-bore trolley wheels mount through the center bore, with .75″ or 1.00″ bores.

Of the 12 part numbers, 6 are retainer and 6 are full ball complement. Seals: triple labyrinth, Splashproof®, Splashproof® with wiper seal (9605100) and open (9604200).

Parts marked 1 (0990330, 0990230) relube through the welsh plug, and parts marked 2 are ship channel wheels. Column U shows the tread profile (U1, U2 or U4).

A 6″ retainer wheel runs 8 balls in a steel separator for the lowest friction, rated to 325°F. A 6″ full ball complement wheel runs 13 balls with no separator for heavy load and contamination, rated to 500°F. Our wheel configuration guide shows how to tell them apart.

Table key

See wheel tread in column U.

Trolley wheel tread profiles: flat, crowned, contoured and V-groove

1 = Relube Thru Welsh Plug
2 = Ship Channel

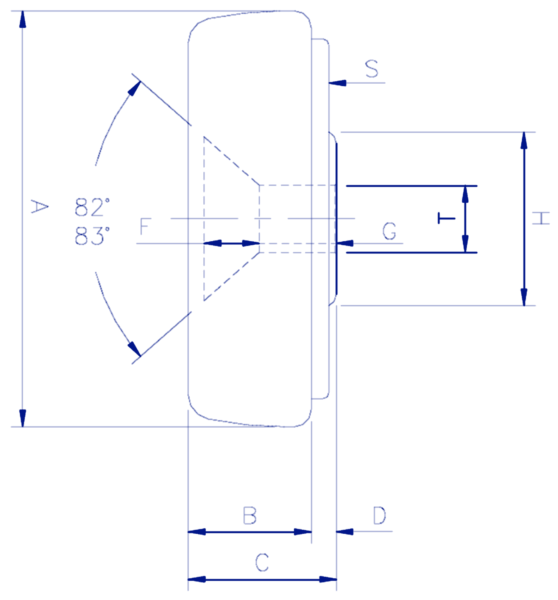

Part Number	Wheel Design	A	B	C	D	F	G	H	S	T	U
9010000	Retainer	4.81	1.31	1.44	.13	.34	.86	N/A	Splashproof®	1.00	U2
6100000	Retainer	4.81	1.31	1.43	.11	.49	1.20	1.88	Triple Labyrinth	.75	U2
0990300	Retainer	4.81	1.36	1.47	.11	.49	1.20	1.88	Triple Labyrinth	.75	U1
0990200	Retainer	4.81	1.36	1.47	.11	.49	1.20	1.88	Triple Labyrinth	.75	U4
1-0990330	Retainer	4.81	1.36	1.47	.11	.49	1.20	1.88	Triple Labyrinth	.75	U1
1-0990230	Retainer	4.81	1.36	1.47	.11	.49	1.20	1.88	Triple Labyrinth	.75	U4
9360000	Full Ball Comp.	4.81	1.36	1.42	.06	.35	.84	1.88	Triple Labyrinth	.75	U2
9480000	Full Ball Comp.	4.81	1.36	1.47	.11	.35	.90	N/A	Splashproof®	1.00	U2
2-9605100	Full Ball Comp.	4.81	1.31	1.46	.15	.35	.90	N/A	Splashproof® w/ Wiper	1.00	U2
2-9604100	Full Ball Comp.	4.81	1.31	1.46	.15	.35	.90	N/A	Splashproof®	1.00	U2
2-9604200	Full Ball Comp.	4.81	1.31	1.41	.10	.35	.85	1.88	Open	1.00	U2
2-9615300	Full Ball Comp.	4.94	1.36	1.48	.12	.35	.90	N/A	Splashproof®	1.00	U2
